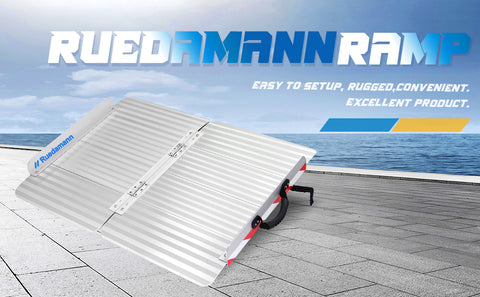

Ruedamann® Wheelchair Ramp Durable Aluminum with Anti-Slip and Foldable

Ruedamann® Wheelchair Ramp Durable Aluminum with Anti-Slip and Foldable

  • 10% OFF Available to Sitewide!
Regular price $135.99
Regular price Sale price $135.99
Sale Sold out
Shipping calculated at checkout.
Size

【Quality Material Wheelchair Ramp】The ramp is constructed with quality aluminum material. Aluminum alloy has high hardness, toughness and resilience, please use it with confidence.

【Ergonomic Dimensions with High Loading Bearing Capacity】 The ramp can bear the load capacity of 800lbs (400kg). Suitable for vehicles with width less than 30" (770mm).

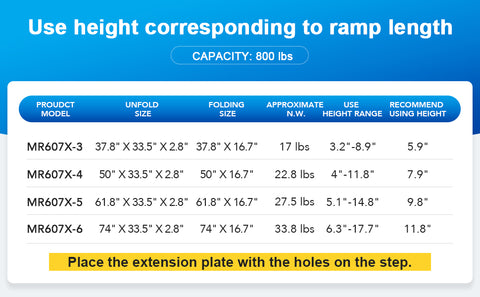

The ramp is equipped with the dimensions of 35.4L* 33.5W inches (90×85cm) . It can height range between 3.2-8.9 inches (8-22.5cm) with the best recommended height of 5.9 inches (15cm) for best use.

The ramp is equipped with the dimensions of 47.2L* 33.5W inches (120×85cm). It can height range between 4-11.8 inches (10-30cm) with the best recommended height of 7.9 inches (20cm) for best use.

 The ramp is equipped with the dimensions of 59L* 33.5W inches (150×85cm) . It can height range between 5.1-14.8 inches (13-37.5cm) with the best recommended height of 9.8 inches (25cm) for best use.

The ramp is equipped with the dimensions of 74L* 33.5W inches (188×85cm) . It can height range between 6.3-17.7 inches (16-45cm) with the best recommended height of 11.8 inches (30cm) for best use.

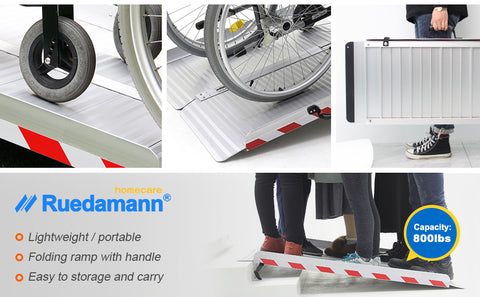

【Humanized Design】The wheelchair ramp is equipped with stainless steel lock for safety, sturdy handle to make it easier to carry around and an extension plate to make the movement up and down easier with bolts that allow fixing the plate for steadiness. It is equipped with hinges to provide convenient storage and portability. Please do not walk on the hinge or transfer vehicles on the hinge.

【Strong Traction】The ramp offers a surface that is equipped with non-slip design on the back of the rubber ramp to enhance the traction and provide a strong grip on the ground. It also has two sides warning stickers of the ramp for safety use. The extended tail-plate design at both ends allows the ramp to touch the ground with a larger area that offers easy movement of the wheelchairs.

【Lightweight and Wide Application】Owing to the lightweight aluminum material, the ramp is portable and foldable. You can use it outdoors like in your garage, stairs, steps, curbs, handicap spots and doorways for electric wheelchairs, heavy scooters, trolleys and rollators.

View full details

Collapsible content

Shipping

We will deliver the goods within 24 hours after receiving the payment, except for weekends and holidays.Normally, delivery to the lower 48 states of the United States usually takes 3-7 working days(except special circumstances).

Return

Returnable within 30 days.Return Policy

Warranty

Warranty period of our ramp is 1-year, artificial damage is not within the warranty period.

Contact

Whatever you need, wherever you are, we're happy to help you.

Your message will be sent to our customer service center. We will respond to you as soon as possible.

E-mail: salesus@ruedamann.com

How to choose a ramp?

Ruedamann wheelchair ramps are one of the best-selling mobility ramps in the United States and are widely used in the commercial, transportation industry, healthcare and nursing home industries, and private individuals. We know you may also be wondering how to choose the best ramp, so we’ve created this guide to help ensure you get the best ramp for your purposes.

1. First you need to measure the steps, stairs, thresholds, curbs, vehicles, etc. where the ramp will be placed:

(1) Measure the total vertical height from the ground to where the ramp is placed, which we call the "vertical height". (See below)
How to select a wheelchair ramp?


(2) Measure the total length of the steps to ensure the ramp is long enough to overcome the steps.  (See below)
Slope length



2. Understand the slope ratio.

Common slope ratios are: 1:4; 1:6; 1:8; 1:10 (see the figure below).

size

For manual wheelchairs, our recommended slope ratio is 1:6. For example, for a 1 cm rise (vertical height) you will need a 6cm long ramp. If you have a larger space for the ramp, you can buy a longer ramp than recommended as this means you will have less effort and easier going up and down the steps. Note: 1:4 is the maximum height.

3. We also recommend checking the threshold and whether there is any height inside the steps.

For situations where the interior height is low, bridge-type sill ramps are often the perfect solution. ​

4. Choice of width.

Your ramp should be wide enough to accommodate your wheelchair/scooter, but narrow enough to accommodate your threshold. For this reason, we offer a range of widths for you to choose from.

Our normal folding ramps are 72cm wide, and we also offer extra-wide folding ramps with a width of 85cm. Telescopic ramps require you to check whether the tire width of the wheelchair or scooter you are using exceeds the inner width of the telescopic ramp. The inner width of our telescopic ramps is in the range of 15-25cm.

Note: Since the side height of all telescopic ramps is 5cm, the chassis height of the wheelchair must be greater than 5cm. If the bottom of the chassis is too low, the wheelchair will get stuck on the side tubes of the ramp.

5. Contact us.

If the above article does not answer your questions, please contact us with your questions.
