Ruedamann® Adjustable Aluminum Wheelchair Ramp Non-Skid Surface 1 set

Ruedamann® Adjustable Aluminum Wheelchair Ramp Non-Skid Surface 1 set

  • 10% OFF Available to Sitewide!

4 total reviews

Regular price $119.99
Regular price Sale price $119.99
Sale Sold out
Shipping calculated at checkout.
Size

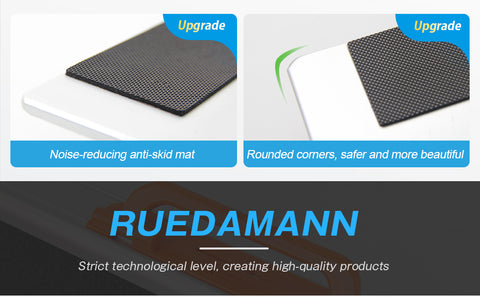

【Anti-slip Surface】The wheelchair ramp is lightweight and portable threshold ramp, telescopic design for easy carrying, made from non-rust, slip-proof and water-resistant aluminum.Surface of the wheelchair ramp is pasted with anti-slip film which is with high traction and anti-skid ability.

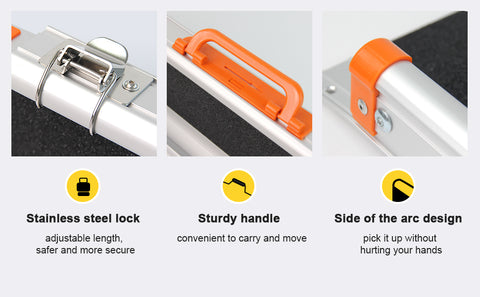

【Adjustable Length】All locks in the wheelchair ramp are made of stainless steel. The bending degree of the locks in the ramp can be adjusted by using tools.You can use the locks to make the wheelchair ramp at any length you want.
【Durable Aluminum】Durable aluminum construction holds up to 800 lb (400kg) capacity, 600 lb (300kg) impact capacity.Aluminum alloy has high hardness, toughness and resilience, please use it with confidence. Perfectly used for manual wheelchairs. Please don't use motorcycles or power wheelchairs on this ramp.
【Versatile Use】This wheelchair ramp is made for indoor or outdoor steps,stairs,curbs,handicaps,doorways and etc. Non-slip rubber pads placed on the back at the top of the wheelchair ramp for safety use and prevent slip from the using occasions. If the plastic handles are damaged due to transportation, please contact us for mailing.
【Specifications】This ramp is sold in pair.Suitable for vehicles with wheels section width less than 5.7" (145mm), ground clearance higher than 2" (5cm). Before purchasing, please make sure that our product size is suitable for the place you want to use.

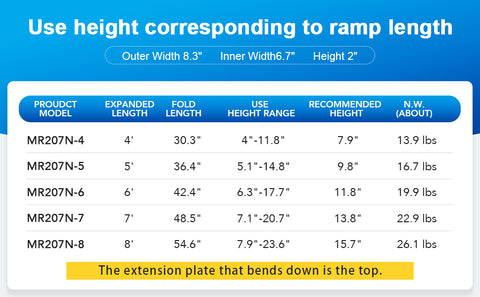

 4'(122.5cm) long, 8.3" (21cm) outer wide, 6.7" (17cm) use wide, the ramps can be used on a step from 4.8"-12" (12-30cm). Best recommended using height is 8" (20cm).

5'(153cm) long, 8.3" (21cm) outer wide, 6.7" (17cm) use wide, the ramps can be used on a step from  6"-15" (15-37.5cm). Best recommended using height is 10" (25cm).

6' (183cm) long, 8.3" (21cm) outer wide, 6.7" (17cm) use wide, the ramps can be used on a step from  7.2"-18" (18-45cm). Best recommended using height is 12" (30cm).

7' ramps are (214cm) long, 8.3" (21cm) outer wide, 6.7" (17cm) use wide, the ramps can be used on a step from  8.4"-21" (21-52.5cm). Best recommended using height is 13.8" (35cm).

8' ramps are (244cm) long, 8.3" (21cm) outer wide, 6.7" (17cm) use wide, the ramps can be used on a step from 9.6"-24" (24-60cm). Best recommended using height is 16" (40cm).

Suitable for vehicles with wheels section width less than 5.7" (145mm), ground clearance higher than 2" (5cm). Before purchasing, please make sure that our product size is suitable for the place you want to use.

View full details

Collapsible content

Shipping

We will deliver the goods within 24 hours after receiving the payment, except for weekends and holidays.Normally, delivery to the lower 48 states of the United States usually takes 3-7 working days(except special circumstances).

Return

Returnable within 30 days.Return Policy

Warranty

Warranty period of our ramp is 1-year, artificial damage is not within the warranty period.

Contact

Whatever you need, wherever you are, we're happy to help you.

Your message will be sent to our customer service center. We will respond to you as soon as possible.

E-mail: salesus@ruedamann.com

How to choose a ramp?

Ruedamann wheelchair ramps are one of the best-selling mobility ramps in the United States and are widely used in the commercial, transportation industry, healthcare and nursing home industries, and private individuals. We know you may also be wondering how to choose the best ramp, so we’ve created this guide to help ensure you get the best ramp for your purposes.

1. First you need to measure the steps, stairs, thresholds, curbs, vehicles, etc. where the ramp will be placed:

(1) Measure the total vertical height from the ground to where the ramp is placed, which we call the "vertical height". (See below)
How to select a wheelchair ramp?


(2) Measure the total length of the steps to ensure the ramp is long enough to overcome the steps.  (See below)
Slope length



2. Understand the slope ratio.

Common slope ratios are: 1:4; 1:6; 1:8; 1:10 (see the figure below).

size

For manual wheelchairs, our recommended slope ratio is 1:6. For example, for a 1 cm rise (vertical height) you will need a 6cm long ramp. If you have a larger space for the ramp, you can buy a longer ramp than recommended as this means you will have less effort and easier going up and down the steps. Note: 1:4 is the maximum height.

3. We also recommend checking the threshold and whether there is any height inside the steps.

For situations where the interior height is low, bridge-type sill ramps are often the perfect solution. ​

4. Choice of width.

Your ramp should be wide enough to accommodate your wheelchair/scooter, but narrow enough to accommodate your threshold. For this reason, we offer a range of widths for you to choose from.

Our normal folding ramps are 72cm wide, and we also offer extra-wide folding ramps with a width of 85cm. Telescopic ramps require you to check whether the tire width of the wheelchair or scooter you are using exceeds the inner width of the telescopic ramp. The inner width of our telescopic ramps is in the range of 15-25cm.

Note: Since the side height of all telescopic ramps is 5cm, the chassis height of the wheelchair must be greater than 5cm. If the bottom of the chassis is too low, the wheelchair will get stuck on the side tubes of the ramp.

5. Contact us.

If the above article does not answer your questions, please contact us with your questions.
