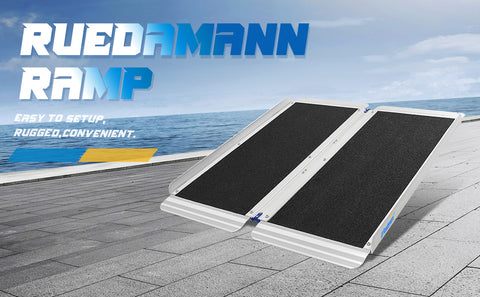

Ruedamann® 30.3"W Non-Skid Threshold Ramp Folding Aluminum Wheelchair Ramp

Ruedamann® 30.3"W Non-Skid Threshold Ramp Folding Aluminum Wheelchair Ramp

  • 10% OFF Available to Sitewide!

4 total reviews

Regular price $115.99
Regular price $149.99 Sale price $115.99
Sale Sold out
Shipping calculated at checkout.

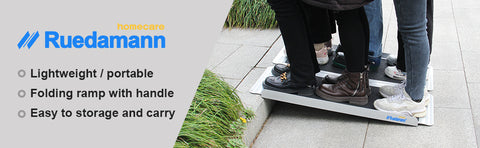

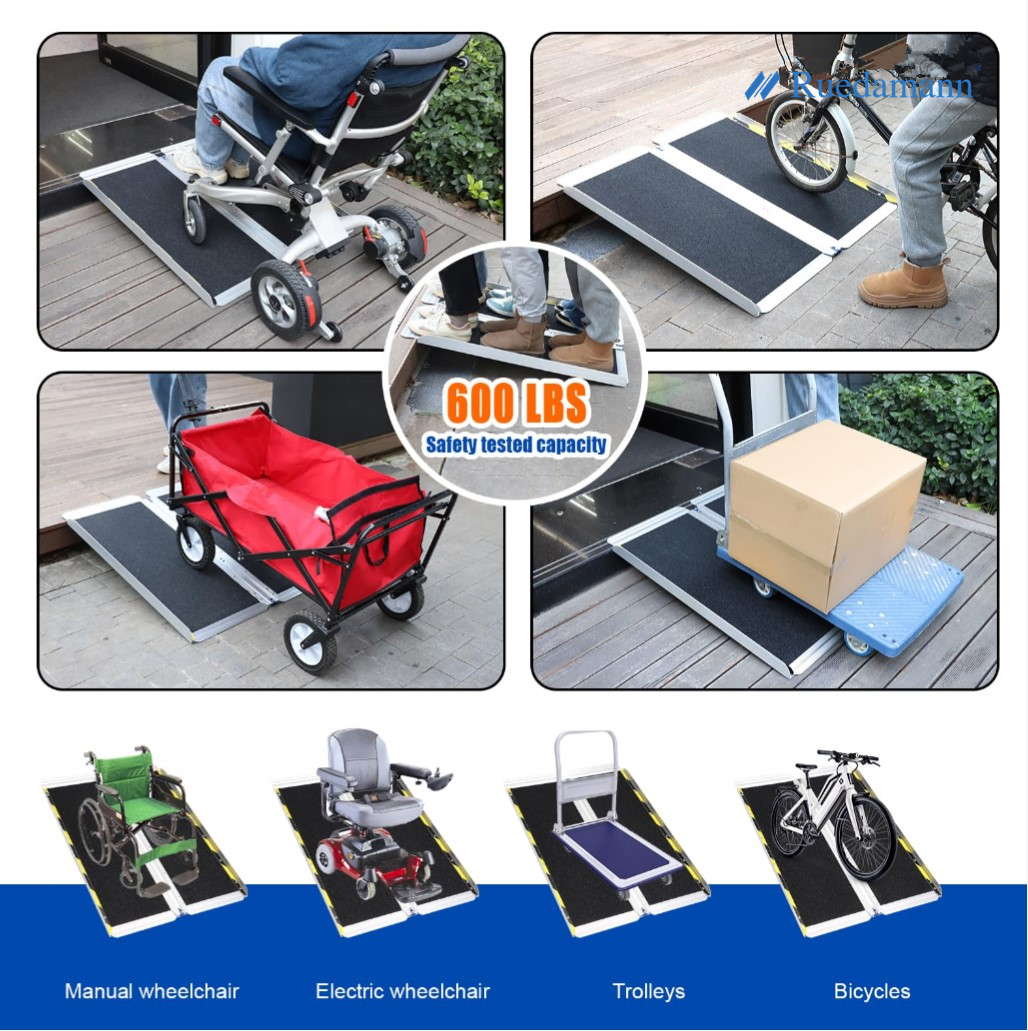

【Lightweight Design & Portable】This portable, foldable wheelchair ramp ensures wheelchair access over stairs, steps, curbs, and other obstacles. Aluminum alloy maintains high levels of hardness, toughness, and resiliency; please feel free to use it. This ramp can accommodate manual wheelchairs, electric wheelchairs, carts, rollators, and other two-wheeled vehicles (not suggested to use for motorcycles).

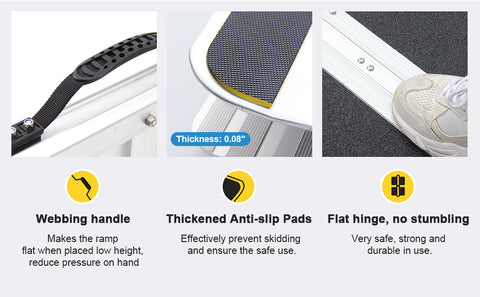

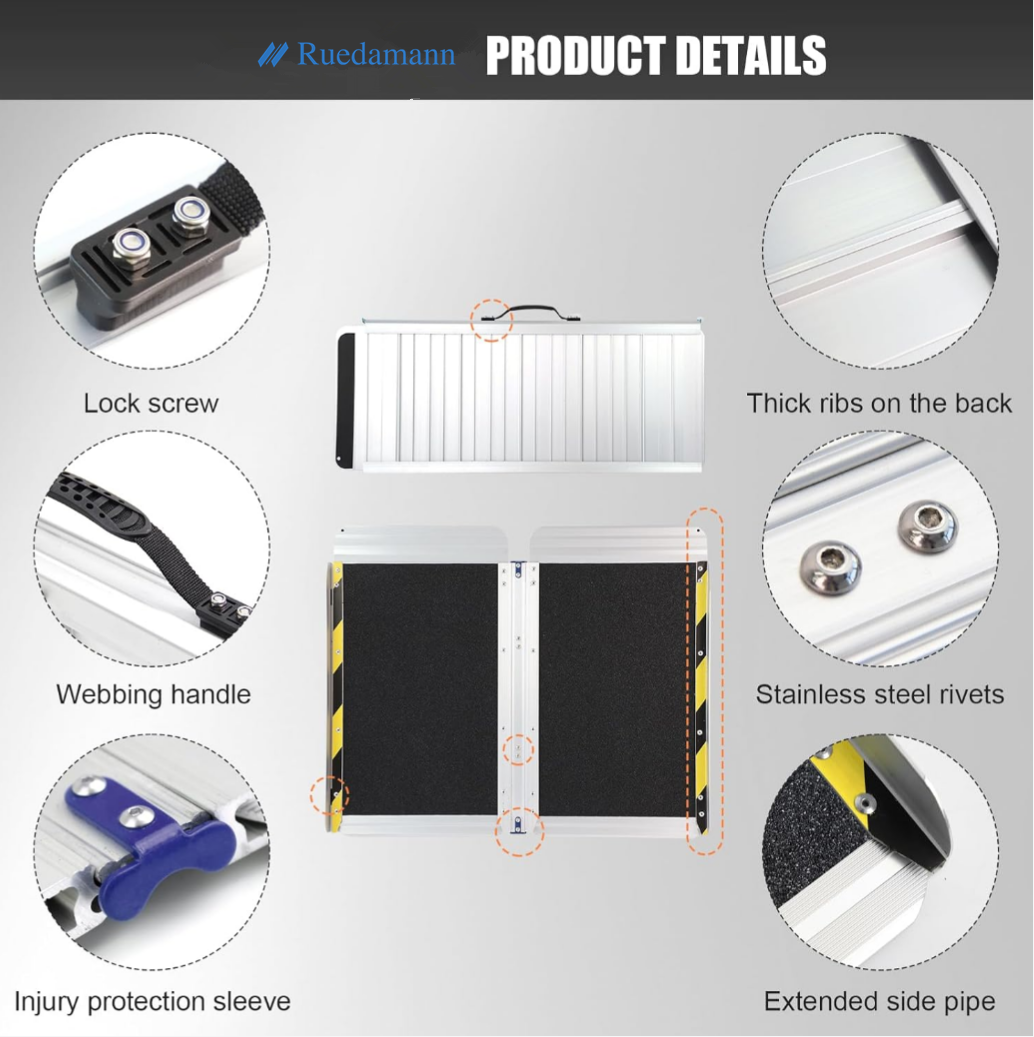

【Seamless Design】This threshold ramp is designed without seams and features specially designed hinges for storage and portability. It is recommended not to load vehicles or walk on the hinge in the middle of the ramp.

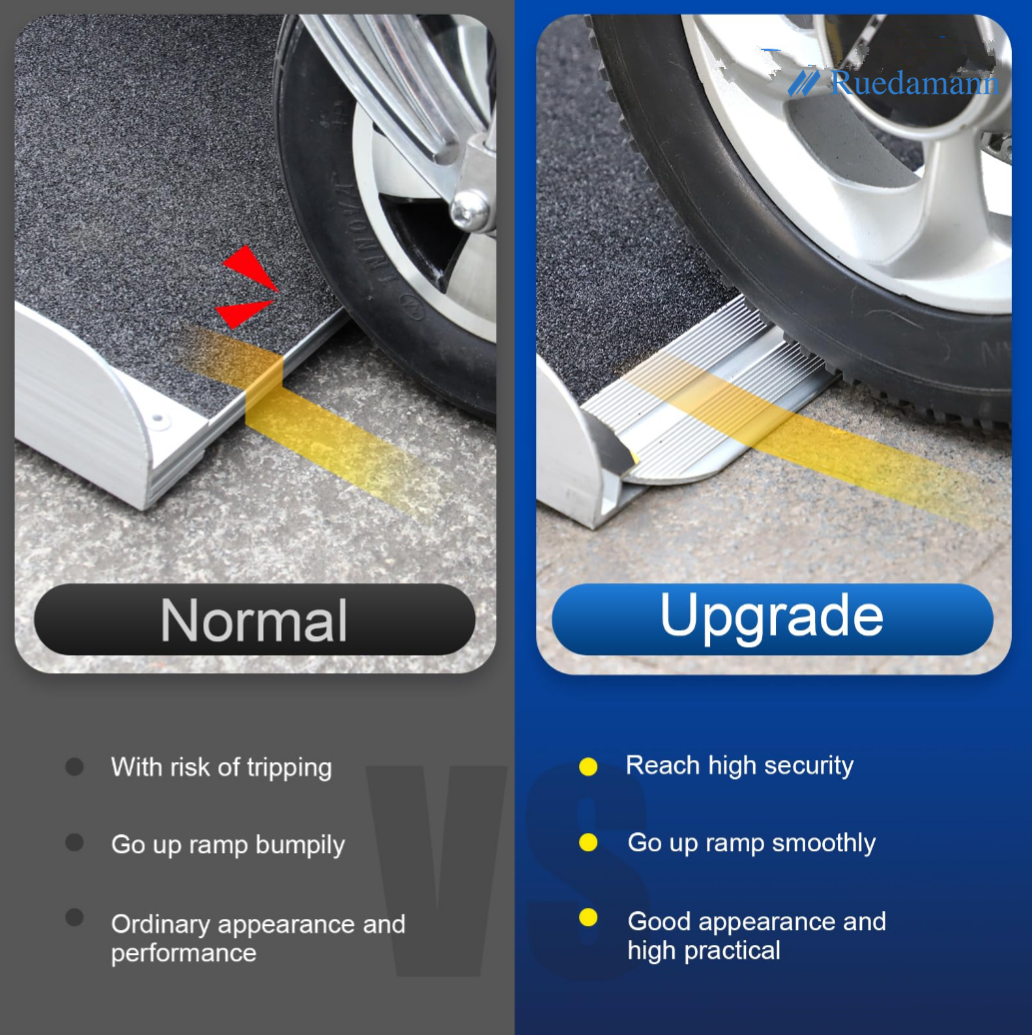

【Anti-Skid Surface】The back of the wheelchair ramp is equipped with non-slip rubber pads for safety and to prevent slipping while in use. It also has a non-slip layer on its top surface. The extended tail-plate design at both ends enables the ramp to have a larger contact area with the ground, a higher load-bearing capacity, improved skid resistance, and an easier ascent.

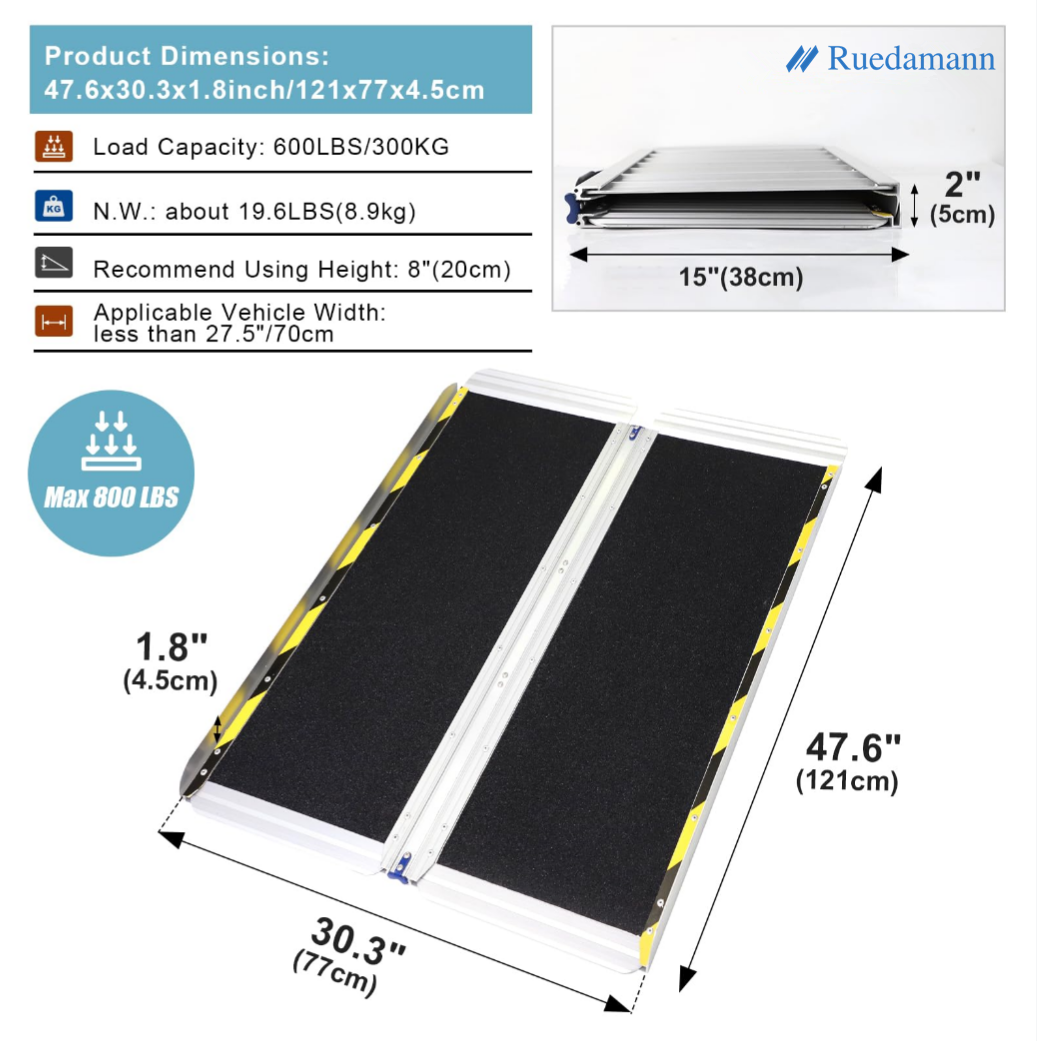

【Specifications】This wheelchair ramp has a nylon grip for portability. In addition, the ramp is waterproof and slip-resistant and can support up to 800 lb (400kg) capacity, 600 lb (300kg) impact capacity.

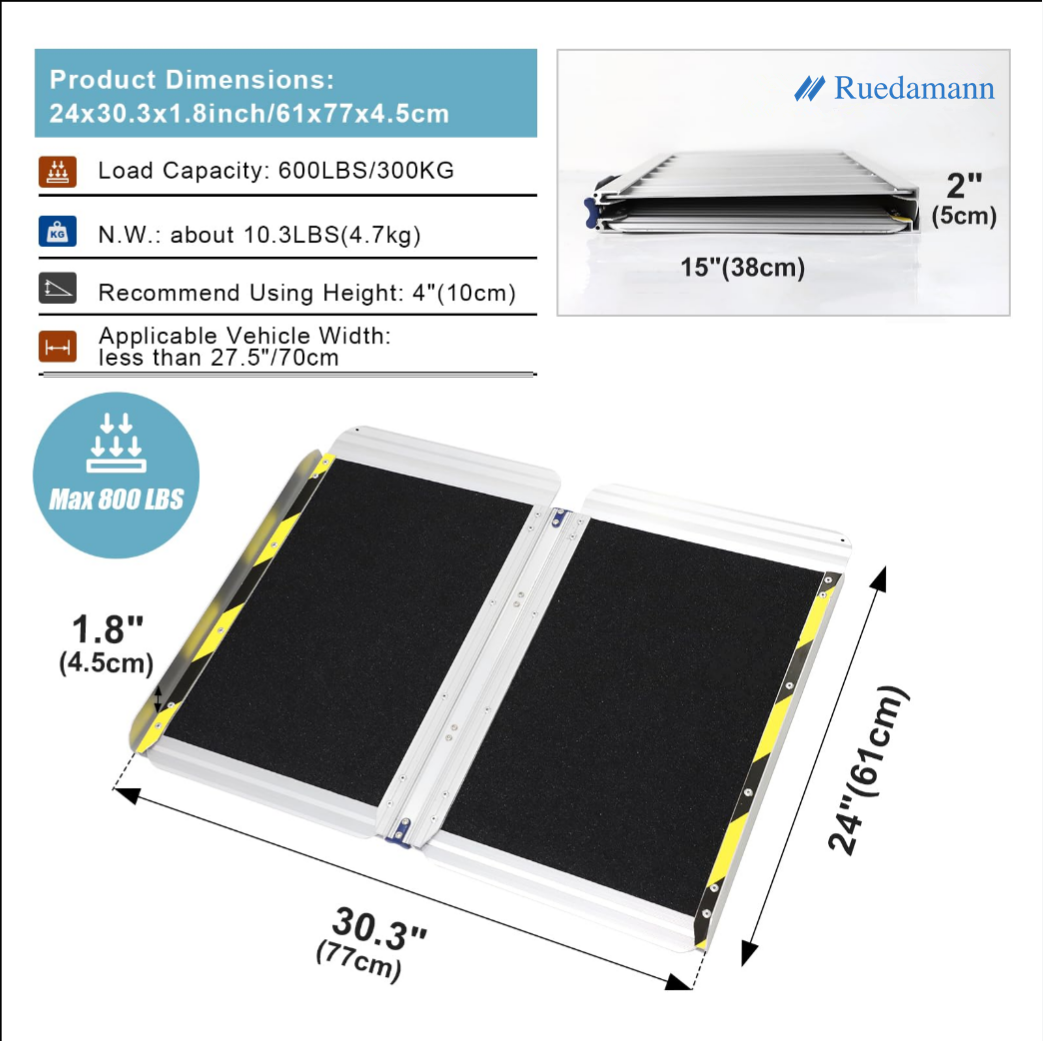

2' : Range of usable height is 2.4"-6"(6-15cm). It is ideal for use with a height of 4"(10cm).

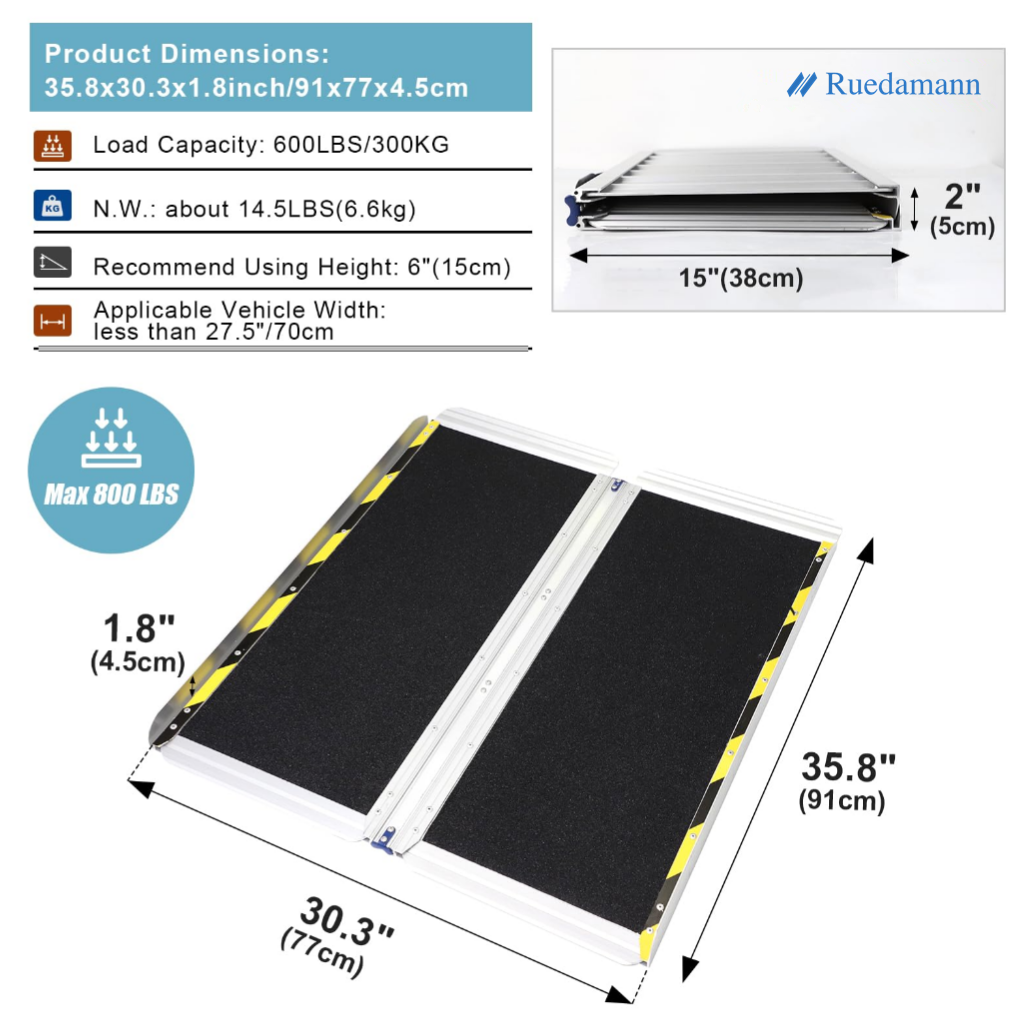

3' : Range of usable height is 3.6"-9"(9-22.5cm). It is ideal for use with a height of 6"(15cm).

4' :Range of usable height is 4.8"-12"(12-30cm). It is ideal for use with a height of 8"(20cm).

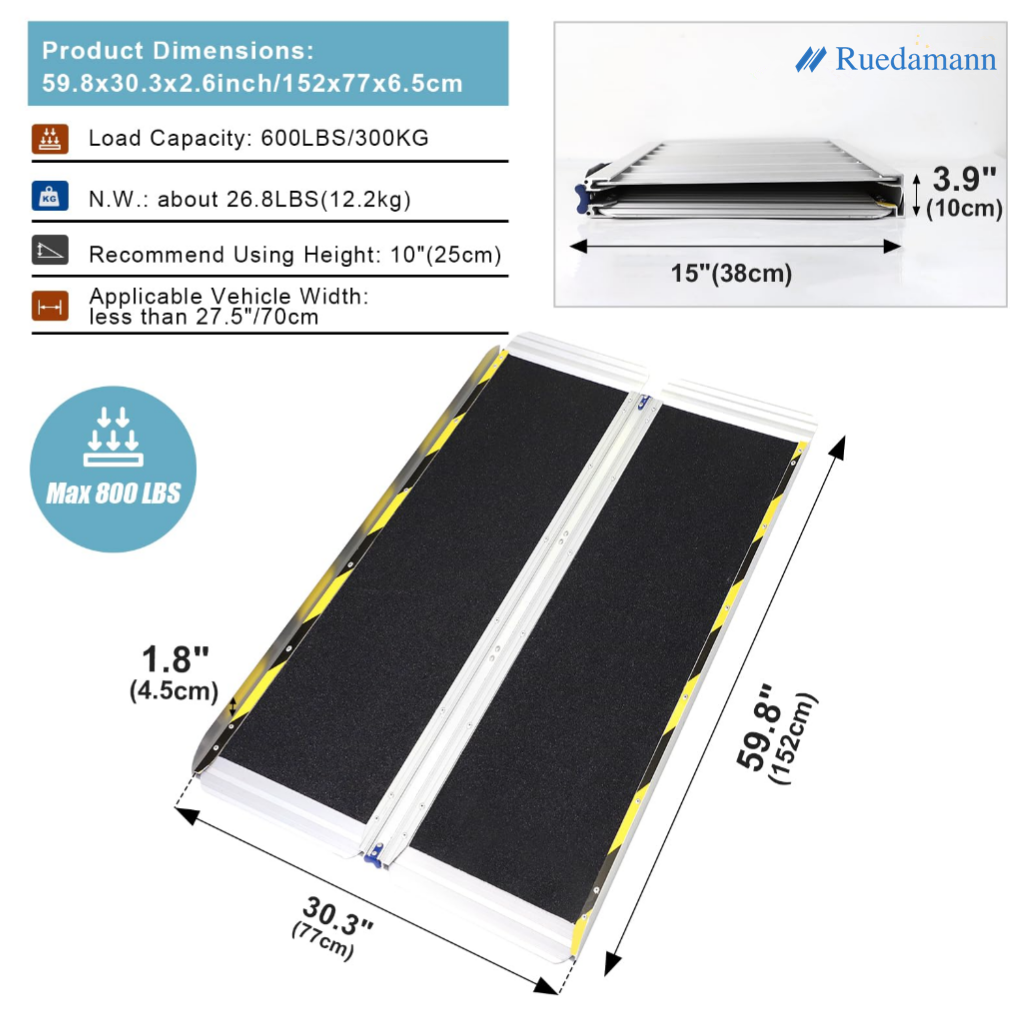

5' : Range of usable height is 6"-15"(15-37.5cm). It is ideal for use with a height of 10"(25cm).

【Caution】If use two wheels vehicle only on half side of the ramp, you need to fix the whole ramp to avoid the other half side bend up. There are bolts with this ramp. You can secure the ramp to the ground with bolts via the extension plate's holes to prevent movement. Warranty period of our ramp is 1-year, artificial damage is not within the warranty period.


View full details

Collapsible content


We will deliver the goods within 24 hours after receiving the payment, except for weekends and holidays.Normally, delivery to the lower 48 states of the United States usually takes 3-7 working days(except special circumstances).


Returnable within 30 days.Return Policy


Warranty period of our ramp is 1-year, artificial damage is not within the warranty period.


Whatever you need, wherever you are, we're happy to help you.

Your message will be sent to our customer service center. We will respond to you as soon as possible.


How to choose a ramp?

Ruedamann wheelchair ramps are one of the best-selling mobility ramps in the United States and are widely used in the commercial, transportation industry, healthcare and nursing home industries, and private individuals. We know you may also be wondering how to choose the best ramp, so we’ve created this guide to help ensure you get the best ramp for your purposes.

1. First you need to measure the steps, stairs, thresholds, curbs, vehicles, etc. where the ramp will be placed:

(1) Measure the total vertical height from the ground to where the ramp is placed, which we call the "vertical height". (See below)
How to select a wheelchair ramp?

(2) Measure the total length of the steps to ensure the ramp is long enough to overcome the steps.  (See below)
Slope length


2. Understand the slope ratio.

Common slope ratios are: 1:4; 1:6; 1:8; 1:10 (see the figure below).


For manual wheelchairs, our recommended slope ratio is 1:6. For example, for a 1 cm rise (vertical height) you will need a 6cm long ramp. If you have a larger space for the ramp, you can buy a longer ramp than recommended as this means you will have less effort and easier going up and down the steps. Note: 1:4 is the maximum height.

3. We also recommend checking the threshold and whether there is any height inside the steps.

For situations where the interior height is low, bridge-type sill ramps are often the perfect solution. ​

4. Choice of width.

Your ramp should be wide enough to accommodate your wheelchair/scooter, but narrow enough to accommodate your threshold. For this reason, we offer a range of widths for you to choose from.

Our normal folding ramps are 72cm wide, and we also offer extra-wide folding ramps with a width of 85cm. Telescopic ramps require you to check whether the tire width of the wheelchair or scooter you are using exceeds the inner width of the telescopic ramp. The inner width of our telescopic ramps is in the range of 15-25cm.

Note: Since the side height of all telescopic ramps is 5cm, the chassis height of the wheelchair must be greater than 5cm. If the bottom of the chassis is too low, the wheelchair will get stuck on the side tubes of the ramp.

5. Contact us.

If the above article does not answer your questions, please contact us with your questions.
