Ruedamann® Steel Loading Ramp Portable Lightweight Ramps with Non-Slip Surface

Ruedamann® Steel Loading Ramp Portable Lightweight Ramps with Non-Slip Surface

  • 10% OFF Available to Sitewide!
Regular price $65.99
Regular price Sale price $65.99
Sale Sold out
Shipping calculated at checkout.

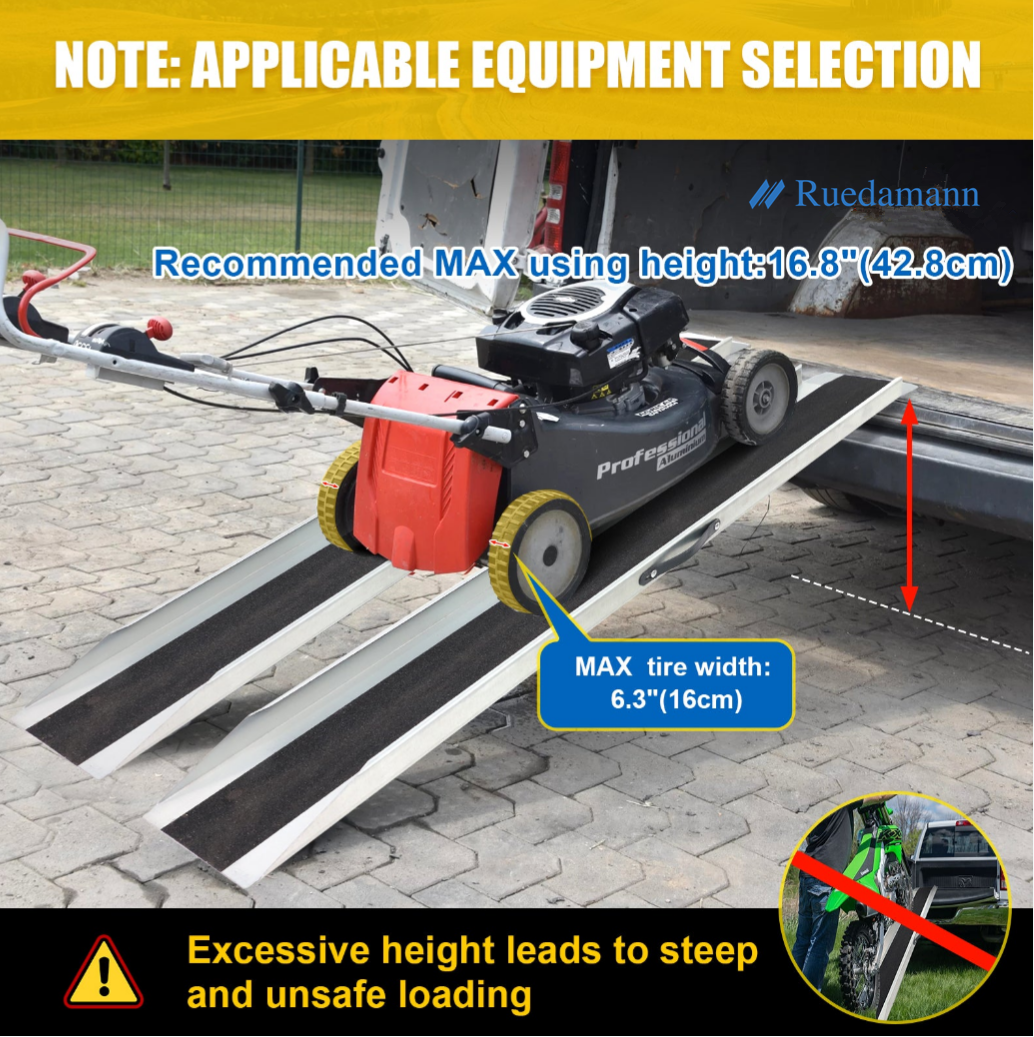

  • 【Steel Loading Ramp】: The shed ramp size is 59 "L × 9" × 1.8" (150cm × 23cm × 4.5cm), easy to carry. The inner width is 8 "(20.5cm), which is applicable to tires with width less than 6.8" (17.5cm). The recommended using height range is 14.7"- 16.9 "(37cm-43cm).

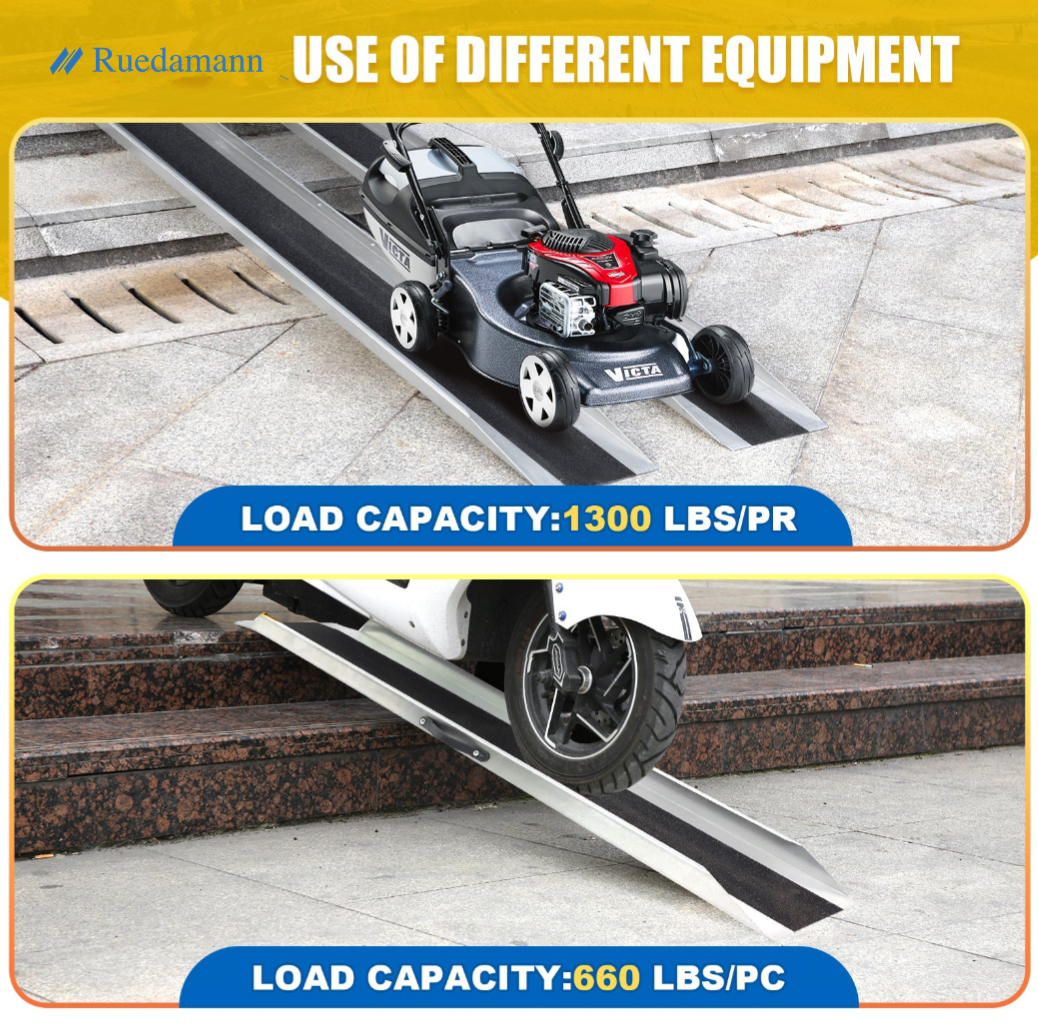

  • 【Light Weight and High Capacity】: Our loading ramp is made of high-quality steel, which is firm and durable. Anti-rust coating on the surface to prevent rust, for long time service. The net weight of ATV ramp is only 15.8lbs (7.2kg)/PC, and the bearing capacity is 660lbs/PC (300kg/PC),1300lbs/PR(600kg).Note: Please wear gloves when using.

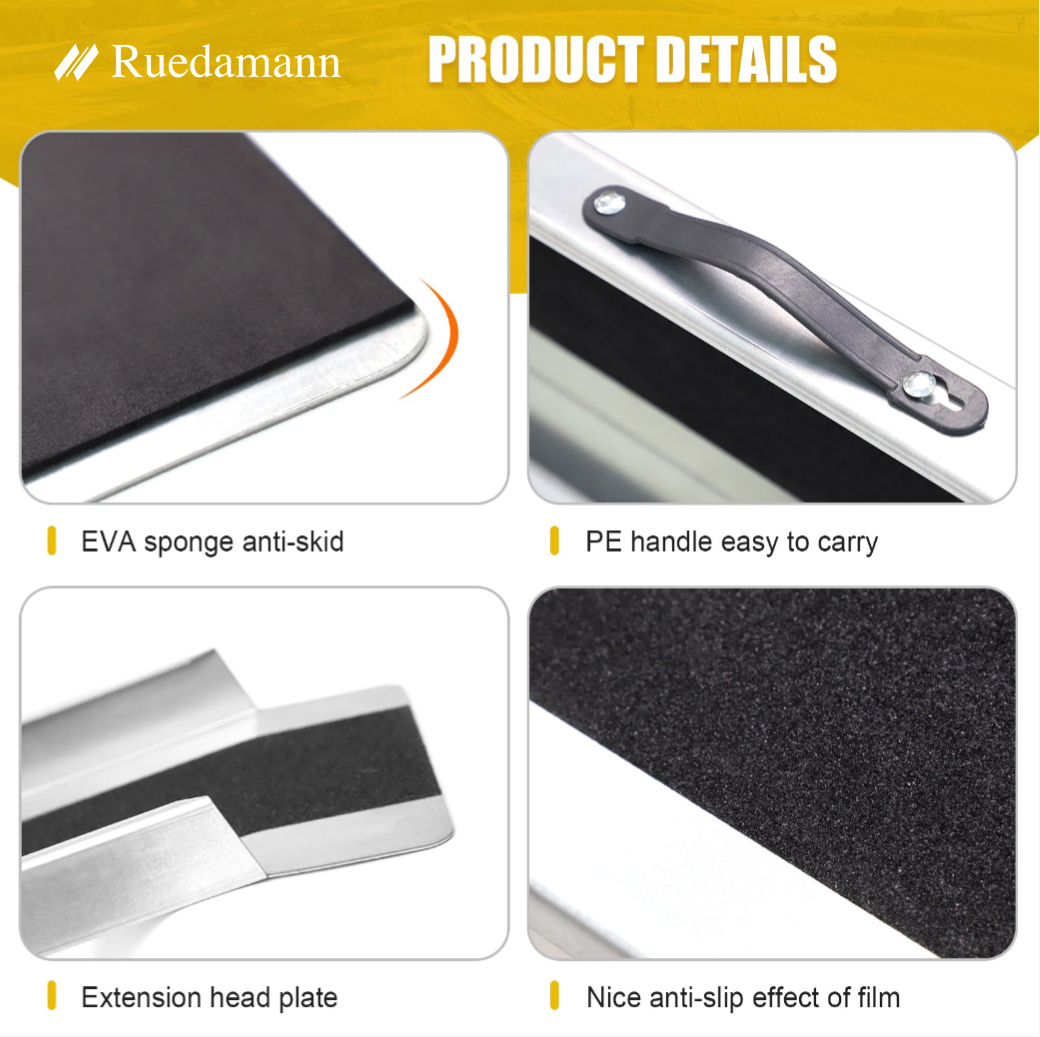

  • 【Higher Safety】: The extension plate at the top of the motorcycle ramp fits the surface more closely, making loading safer without jamming. The side height protects the vehicle from rollover. Anti-slip film is located in the middle of the ramp, with a width of 5.1 "(13cm), which can be safely used even in rainy days and other bad weather.

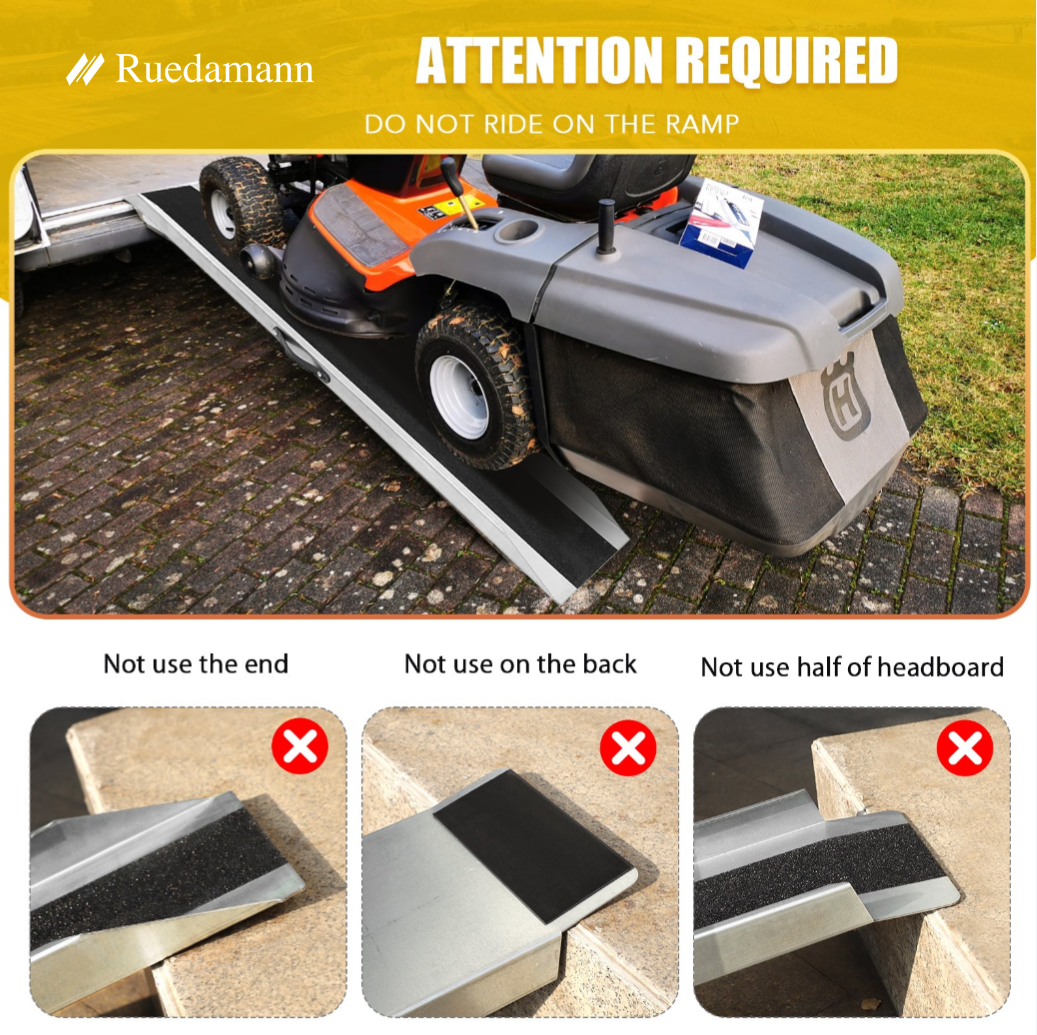

  • 【Easy to use】The head plate of tailgate ramp is extended, and the tail shall contact the ground in a larger area, so that the equipment can be loaded or unloaded without obstacles, but please do not ride on the ramp. The ramp does not need to be assembled. You can easily place the ramp at the tailgate, garage door, and stairs. You can purchase the number of ramps according to your application.

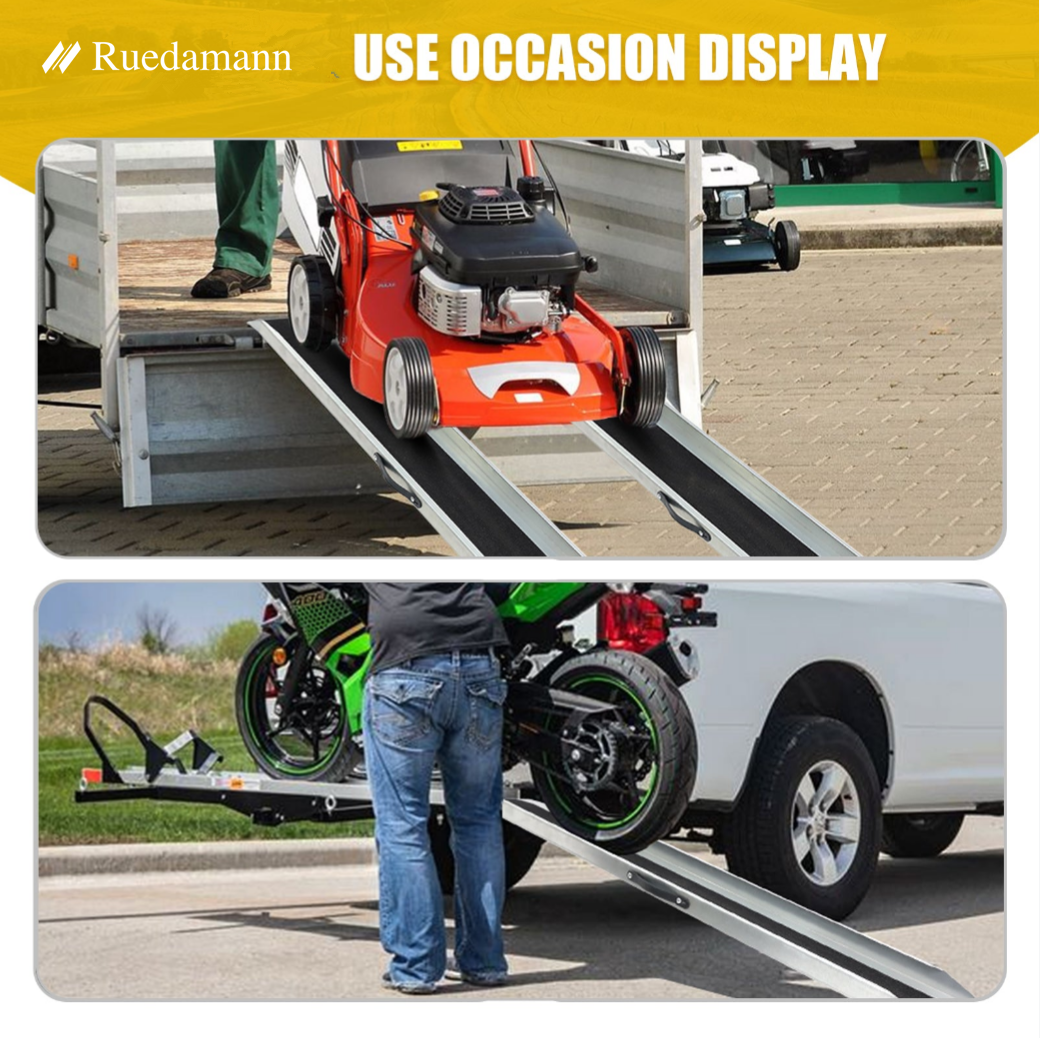

  • 【Multipurpose Loading】: Single piece is suitable for off-road vehicles, bicycles, etc. Two pieces are suitable for Carts, trailers, lawn mowers, garden tractor, golf carts, snow blowers, and most other four wheeled vehicles.Warranty period of our loading ramp is 1-year, artificial damage is not within the warranty period.
View full details

Collapsible content


We will deliver the goods within 24 hours after receiving the payment, except for weekends and holidays.Normally, delivery to the lower 48 states of the United States usually takes 3-7 working days(except special circumstances).


Returnable within 30 days.Return Policy


Warranty period of our ramp is 1-year, artificial damage is not within the warranty period.


Whatever you need, wherever you are, we're happy to help you.

Your message will be sent to our customer service center. We will respond to you as soon as possible.


How to choose a ramp?

Ruedamann wheelchair ramps are one of the best-selling mobility ramps in the United States and are widely used in the commercial, transportation industry, healthcare and nursing home industries, and private individuals. We know you may also be wondering how to choose the best ramp, so we’ve created this guide to help ensure you get the best ramp for your purposes.

1. First you need to measure the steps, stairs, thresholds, curbs, vehicles, etc. where the ramp will be placed:

(1) Measure the total vertical height from the ground to where the ramp is placed, which we call the "vertical height". (See below)
How to select a wheelchair ramp?

(2) Measure the total length of the steps to ensure the ramp is long enough to overcome the steps.  (See below)
Slope length


2. Understand the slope ratio.

Common slope ratios are: 1:4; 1:6; 1:8; 1:10 (see the figure below).


For manual wheelchairs, our recommended slope ratio is 1:6. For example, for a 1 cm rise (vertical height) you will need a 6cm long ramp. If you have a larger space for the ramp, you can buy a longer ramp than recommended as this means you will have less effort and easier going up and down the steps. Note: 1:4 is the maximum height.

3. We also recommend checking the threshold and whether there is any height inside the steps.

For situations where the interior height is low, bridge-type sill ramps are often the perfect solution. ​

4. Choice of width.

Your ramp should be wide enough to accommodate your wheelchair/scooter, but narrow enough to accommodate your threshold. For this reason, we offer a range of widths for you to choose from.

Our normal folding ramps are 72cm wide, and we also offer extra-wide folding ramps with a width of 85cm. Telescopic ramps require you to check whether the tire width of the wheelchair or scooter you are using exceeds the inner width of the telescopic ramp. The inner width of our telescopic ramps is in the range of 15-25cm.

Note: Since the side height of all telescopic ramps is 5cm, the chassis height of the wheelchair must be greater than 5cm. If the bottom of the chassis is too low, the wheelchair will get stuck on the side tubes of the ramp.

5. Contact us.

If the above article does not answer your questions, please contact us with your questions.
