Ruedamann Modular Threshold Ramps,Plastic,9° Slope,3000lbs
Couldn't load pickup availability
【Modular & Detachable Design】

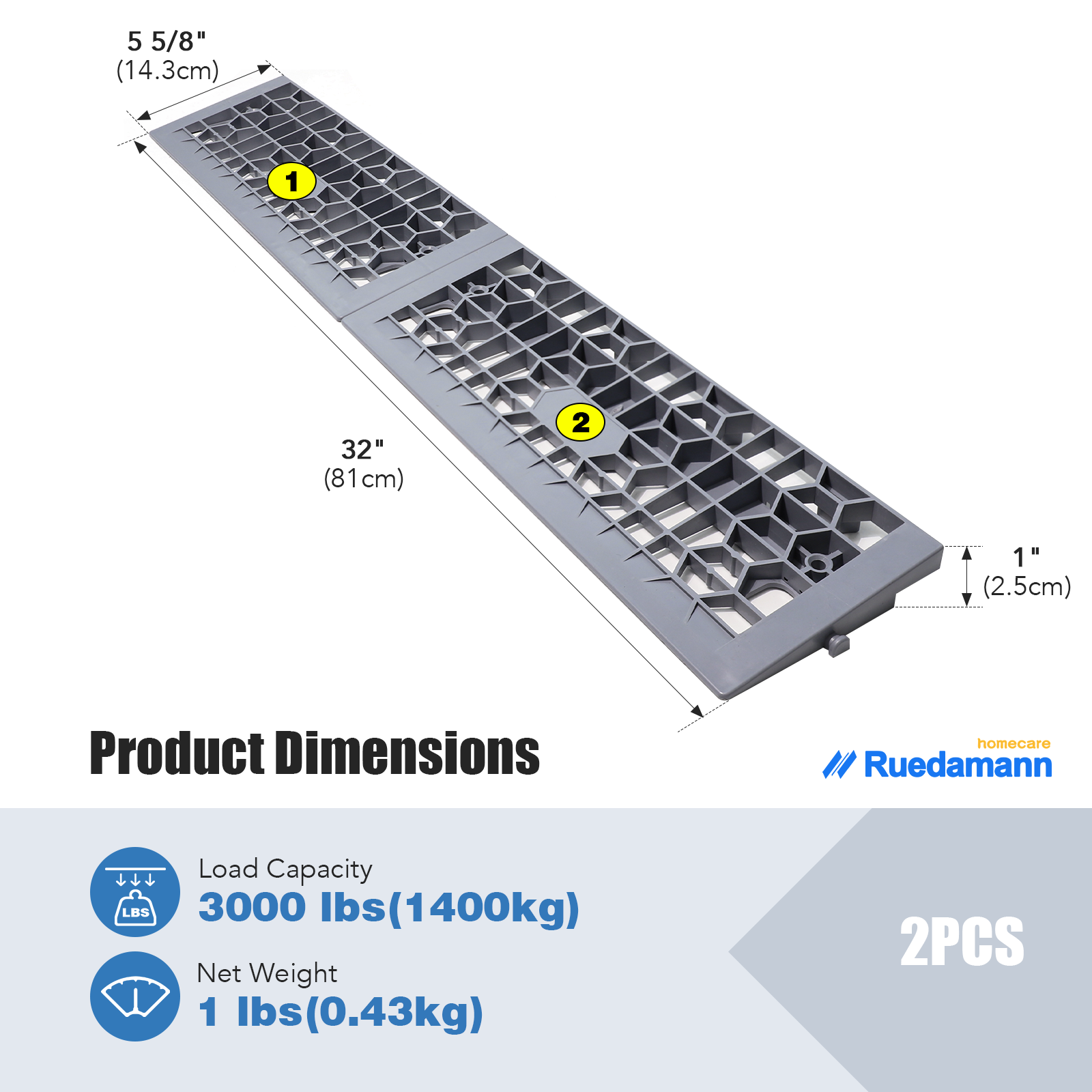

1"rise:This threshold ramp comes in two interlocking 1" high sections that can be easily detached and combined to fit your step’s height and width. Use as a 16" or 32" wide ramp.
2"rise:By splicing, a threshold ramp with a height of 2" and a width of 32" is finally formed. Additionally, there are other assembly methods. As shown in the main image, it has four ramps. Assembly 2: They are separated vertically from the middle, and you can assemble a ramp with a width of 16" and a height of 2". Assembly 3: Split horizontally in the middle. It can also be a ramp 32 "wide and 1" high.
3"rise:The final threshold ramp is 3" in height and 32" in width through splicing. Additionally, there are other assembly methods. As shown in the main image, it has six ramps. Assembly 2: They are separated vertically from the middle, reducing the width by half. You can assemble it into a ramp that is 16" wide and 3" high. It can also be a ramp that is 16" wide and 2 "high or a ramp that is 16" wide and 1" high. Assembly 3: Split horizontally from the middle, with the width remaining unchanged. It can also be a ramp 32 "wide and 1" high. It can also be 32" wide and 2" high.
【9° Slope for Enhanced Safety & Traction】The 9° incline is designed for smooth, indoor surfaces like tiles, offering safe access for wheelchairs, mobility scooters, and walkers. The anti-slip honeycomb texture ensures stable footing, even in wet conditions. Please note, this ramp is not suitable for uneven surfaces such as concrete or gravel. Ideal for indoor use.
【Odorless, Friendly Material】Unlike some rubber ramps with harsh chemical smells, our threshold ramp is made from eco-friendly materials—completely odorless and safe for indoor use. If used outdoors, you will need to purchase screws, drill holes in the ground, and fix the ramp securely.
【Supports Up to 3000 lbs】This durable threshold ramp holds up to 3000 lbs. It offers two easy installation methods: bolt-down or adhesive. Double-sided tape and an instruction manual are included (bolts not included).
【Built-in Cable Channel】Designed with a built-in cable channel, this ramp allows wires to pass safely underneath without damage, making it perfect for indoor use.
【Warm Tips】Please measure your threshold height and width to ensure proper fit. This ramp is ideal for indoor use; for outdoor use, additional installation may be required with screws (not included). This ramp is not suitable for uneven surfaces such as concrete or gravel.
Collapsible content
Shipping
We will deliver the goods within 24 hours after receiving the payment, except for weekends and holidays.Normally, delivery to the lower 48 states of the United States usually takes 3-7 working days（except special circumstances）.
Return
Returnable within 30 days.Return Policy
Warranty
Warranty period of our ramp is 1-year, artificial damage is not within the warranty period.
Contact
Whatever you need, wherever you are, we're happy to help you.
Your message will be sent to our customer service center. We will respond to you as soon as possible.
How to choose a ramp?
Ruedamann wheelchair ramps are one of the best-selling mobility ramps in the United States and are widely used in the commercial, transportation industry, healthcare and nursing home industries, and private individuals. We know you may also be wondering how to choose the best ramp, so we’ve created this guide to help ensure you get the best ramp for your purposes.
1. First you need to measure the steps, stairs, thresholds, curbs, vehicles, etc. where the ramp will be placed:
(1) Measure the total vertical height from the ground to where the ramp is placed, which we call the "vertical height". (See below)
(2) Measure the total length of the steps to ensure the ramp is long enough to overcome the steps. (See below)
2. Understand the slope ratio.
Common slope ratios are: 1:4; 1:6; 1:8; 1:10 (see the figure below).
For manual wheelchairs, our recommended slope ratio is 1:6. For example, for a 1 cm rise (vertical height) you will need a 6cm long ramp. If you have a larger space for the ramp, you can buy a longer ramp than recommended as this means you will have less effort and easier going up and down the steps. Note: 1:4 is the maximum height.
3. We also recommend checking the threshold and whether there is any height inside the steps.
For situations where the interior height is low, bridge-type sill ramps are often the perfect solution.
4. Choice of width.
Your ramp should be wide enough to accommodate your wheelchair/scooter, but narrow enough to accommodate your threshold. For this reason, we offer a range of widths for you to choose from.
Our normal folding ramps are 72cm wide, and we also offer extra-wide folding ramps with a width of 85cm. Telescopic ramps require you to check whether the tire width of the wheelchair or scooter you are using exceeds the inner width of the telescopic ramp. The inner width of our telescopic ramps is in the range of 15-25cm.
Note: Since the side height of all telescopic ramps is 5cm, the chassis height of the wheelchair must be greater than 5cm. If the bottom of the chassis is too low, the wheelchair will get stuck on the side tubes of the ramp.
5. Contact us.
If the above article does not answer your questions, please contact us with your questions.
