Ruedamann® Loading Ramp Aluminum Lightweight Portable 1PC

Ruedamann® Loading Ramp Aluminum Lightweight Portable 1PC

  • 10% OFF Available to Sitewide!
Regular price $65.99
Regular price $85.99 Sale price $65.99
Sale Sold out
Shipping calculated at checkout.

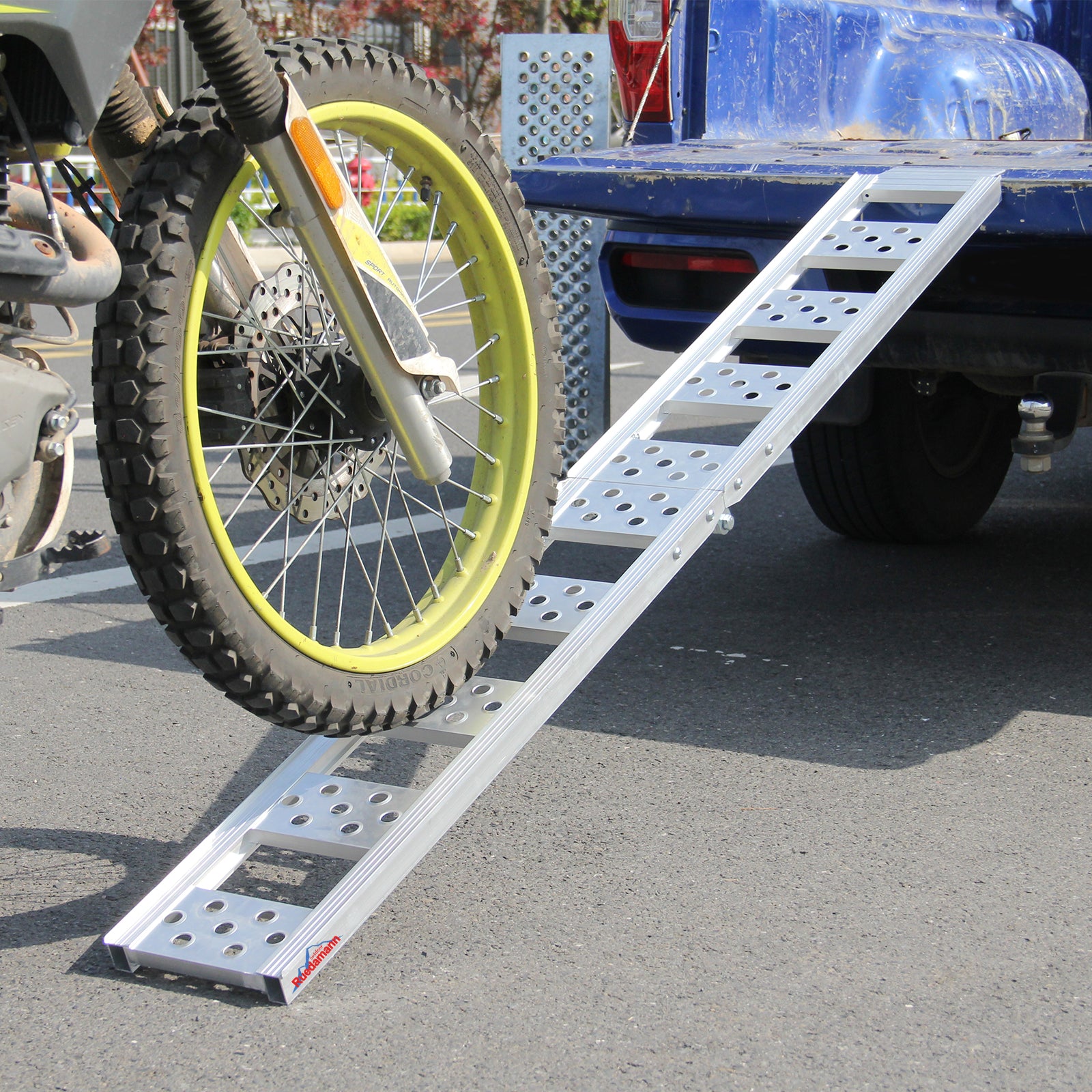

【Lightweight&Durable】This loading ramp is made of lightweight and durable aluminum, weight is about 10.6 lbs. Max load capacity up to 440 lbs. The hinge part is fixed with screws and bolts and crossbars are welded, this allows for the ramp to be folded and unfolded countless times without malfunctions.
【Dimension】Unfolded size is 71'' x 8.1''x 1.5'', folded size is 36'' x 8.1'' x 3.5''. The width of the ramp is 8 ", and we set the spacing between each board of the ramp to 3.8", which can ensure that our products are more stable and firm also will make it easy to load.
【Unique Design】The design of the top headboard allows the loading ramp to fit more closely to the bed of the vehicle, increasing the traction of the ramp while enhancing safety. We also welding the ramp for reinforcement, and the surface was also designed with anti-skid holes to increase the traction.
【Versatile Use】You can buy one or two ramps to use with four-wheeled lightweight ATVs & UTVs, lawn mowers, trucks,trailers,garden tractors,dirt bikes,motorcycles and so on.

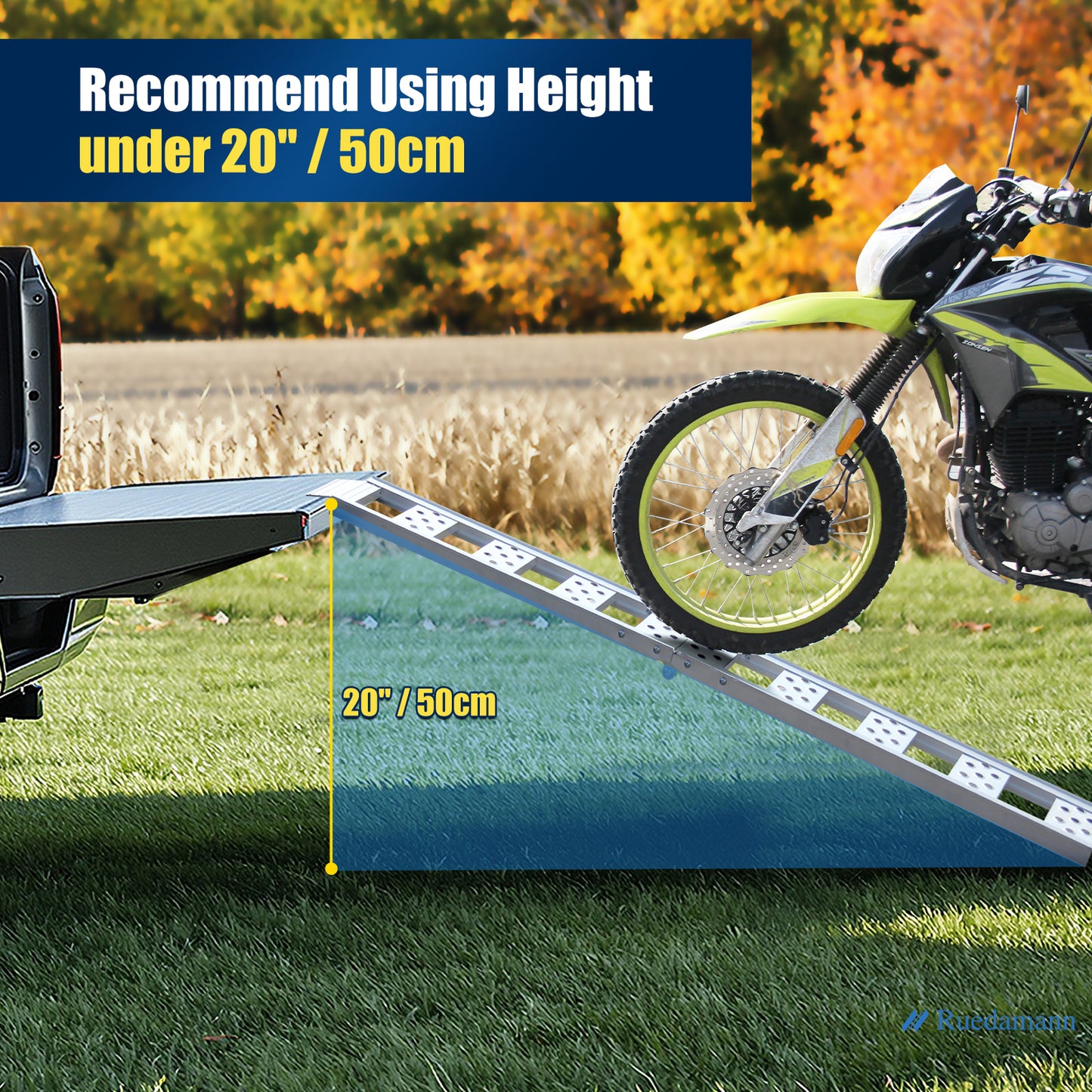

【Safety Tips】Caution: not use it higher than 19.7". Suitable for vehicles with tires section width less than 7" (180mm). Before purchasing, please make sure that our product size is suitable for the place you want to use. Do not ride equipment up or down the ramp. Warranty period of our ramp is 1-year, artificial damage is not within the warranty period.

View full details

Collapsible content


We will deliver the goods within 24 hours after receiving the payment, except for weekends and holidays.Normally, delivery to the lower 48 states of the United States usually takes 3-7 working days(except special circumstances).


Returnable within 30 days.Return Policy


Warranty period of our ramp is 1-year, artificial damage is not within the warranty period.


Whatever you need, wherever you are, we're happy to help you.

Your message will be sent to our customer service center. We will respond to you as soon as possible.


How to choose a ramp?

Ruedamann wheelchair ramps are one of the best-selling mobility ramps in the United States and are widely used in the commercial, transportation industry, healthcare and nursing home industries, and private individuals. We know you may also be wondering how to choose the best ramp, so we’ve created this guide to help ensure you get the best ramp for your purposes.

1. First you need to measure the steps, stairs, thresholds, curbs, vehicles, etc. where the ramp will be placed:

(1) Measure the total vertical height from the ground to where the ramp is placed, which we call the "vertical height". (See below)
How to select a wheelchair ramp?

(2) Measure the total length of the steps to ensure the ramp is long enough to overcome the steps.  (See below)
Slope length


2. Understand the slope ratio.

Common slope ratios are: 1:4; 1:6; 1:8; 1:10 (see the figure below).


For manual wheelchairs, our recommended slope ratio is 1:6. For example, for a 1 cm rise (vertical height) you will need a 6cm long ramp. If you have a larger space for the ramp, you can buy a longer ramp than recommended as this means you will have less effort and easier going up and down the steps. Note: 1:4 is the maximum height.

3. We also recommend checking the threshold and whether there is any height inside the steps.

For situations where the interior height is low, bridge-type sill ramps are often the perfect solution. ​

4. Choice of width.

Your ramp should be wide enough to accommodate your wheelchair/scooter, but narrow enough to accommodate your threshold. For this reason, we offer a range of widths for you to choose from.

Our normal folding ramps are 72cm wide, and we also offer extra-wide folding ramps with a width of 85cm. Telescopic ramps require you to check whether the tire width of the wheelchair or scooter you are using exceeds the inner width of the telescopic ramp. The inner width of our telescopic ramps is in the range of 15-25cm.

Note: Since the side height of all telescopic ramps is 5cm, the chassis height of the wheelchair must be greater than 5cm. If the bottom of the chassis is too low, the wheelchair will get stuck on the side tubes of the ramp.

5. Contact us.

If the above article does not answer your questions, please contact us with your questions.
