Ruedamann® 7.5'L×11" W Loading Ramp Heavy-Duty 1 PC

Ruedamann® 7.5'L×11" W Loading Ramp Heavy-Duty 1 PC

  • 10% OFF Available to Sitewide!

1 total reviews

Regular price $149.99
Regular price Sale price $149.99
Sale Sold out
Shipping calculated at checkout.

【Dimension】The folding loading ramp is manufactured from lightweight aluminum with about 24.7 lbs (11.2kg). Unfolded size: 88.8"L x 11"W x 2"H (225.5 x 28 x 5cm). Folded size: 45.7"L x 11"W x 5.3"H (116 x 28 x 13.5cm). Foldable design for easy carrying and storage. Recommended using height is 25.5" (65cm). Suitable for vehicles with tires section width less than 10" (250mm). Before purchasing, please make sure that our product size is suitable for the place you want to use.

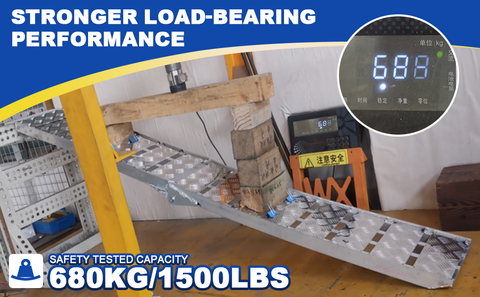

【Lightweight & Large Weight Capacity】The ATV ramp is Built with strong and durable rustproof aluminum construction. Aluminum alloy has high hardness, toughness and resilience, please use it with confidence. High quality hinges are durable, joints and crossbars are welded, provides excellent load-bearing, can holds up to 1500 lbs (680kg). Compared with ordinary commercial ramps, there are two support tubes, the welding length of our hinge is 1" (2.5cm) longer, the entire hinge part is lager, makes it safer and more load bearing.

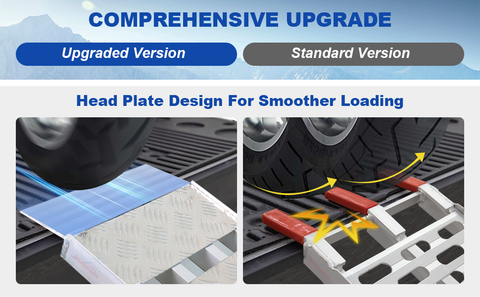

【Unique Design】The extended head plate makes vehicle go smoothly through the ramp, which is more secure. Non-slip rubber pad placed on the back at the top of the motorcycle ramp for safety use, prevent slip from using occasions and eliminate noise in use. Gap design of surface will not accumulate water and add traction in all weather conditions. Tail sloping design allows the ramp to touch the ground with a larger area, and easier to go up the ramp. No need to assemble and simple to set up.

【Versatile Occasions】The folding ramp can be used for loading bicycle,motorcycle,dirt bike and other two wheeled vehicles. And also can be used for ATV, UTV, truck, quad, carts, trailers, pickup trucks, lawn mower, lawn tractors, snow blower equipment,and any other heavy-duty vehicles into sheds, barns, and garages. You can purchase 1pc or 2pcs according to the occasion of use.

【Safely Load and Unload】No need to purchase safety straps separately.The folding truck ramp includes load straps to keep the ramp firmly attached to the tailgate. This ensures safe transfer of the vehicle onto a truck without buckling. Use them again and again to keep safe during transfer. Do not ride equipment up or down the ramp.

View full details

Collapsible content


We will deliver the goods within 24 hours after receiving the payment, except for weekends and holidays.Normally, delivery to the lower 48 states of the United States usually takes 3-7 working days(except special circumstances).


Returnable within 30 days.Return Policy


Warranty period of our ramp is 1-year, artificial damage is not within the warranty period.


Whatever you need, wherever you are, we're happy to help you.

Your message will be sent to our customer service center. We will respond to you as soon as possible.


How to choose a ramp?

Ruedamann wheelchair ramps are one of the best-selling mobility ramps in the United States and are widely used in the commercial, transportation industry, healthcare and nursing home industries, and private individuals. We know you may also be wondering how to choose the best ramp, so we’ve created this guide to help ensure you get the best ramp for your purposes.

1. First you need to measure the steps, stairs, thresholds, curbs, vehicles, etc. where the ramp will be placed:

(1) Measure the total vertical height from the ground to where the ramp is placed, which we call the "vertical height". (See below)
How to select a wheelchair ramp?

(2) Measure the total length of the steps to ensure the ramp is long enough to overcome the steps.  (See below)
Slope length


2. Understand the slope ratio.

Common slope ratios are: 1:4; 1:6; 1:8; 1:10 (see the figure below).


For manual wheelchairs, our recommended slope ratio is 1:6. For example, for a 1 cm rise (vertical height) you will need a 6cm long ramp. If you have a larger space for the ramp, you can buy a longer ramp than recommended as this means you will have less effort and easier going up and down the steps. Note: 1:4 is the maximum height.

3. We also recommend checking the threshold and whether there is any height inside the steps.

For situations where the interior height is low, bridge-type sill ramps are often the perfect solution. ​

4. Choice of width.

Your ramp should be wide enough to accommodate your wheelchair/scooter, but narrow enough to accommodate your threshold. For this reason, we offer a range of widths for you to choose from.

Our normal folding ramps are 72cm wide, and we also offer extra-wide folding ramps with a width of 85cm. Telescopic ramps require you to check whether the tire width of the wheelchair or scooter you are using exceeds the inner width of the telescopic ramp. The inner width of our telescopic ramps is in the range of 15-25cm.

Note: Since the side height of all telescopic ramps is 5cm, the chassis height of the wheelchair must be greater than 5cm. If the bottom of the chassis is too low, the wheelchair will get stuck on the side tubes of the ramp.

5. Contact us.

If the above article does not answer your questions, please contact us with your questions.
