Ruedamann® 72" L × 11.6" W Aluminum Loading Ramp 1 PC

Ruedamann® 72" L × 11.6" W Aluminum Loading Ramp 1 PC

  • 10% OFF Available to Sitewide!
Regular price $149.99
Regular price Sale price $149.99
Sale Sold out
Shipping calculated at checkout.

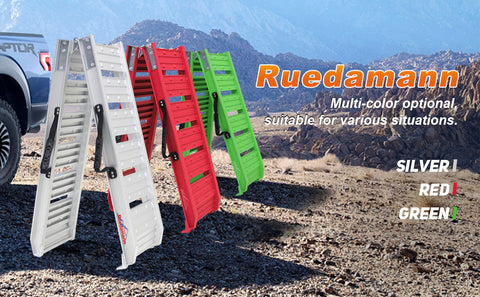

Color
  • 【Lightweight&Durable】This loading ramp is made of lightweight and durable aluminum, weight is about 15.4 lb (7kg). Max load capacity up to 550 lb (250kg).The hinge and welded panels of the heavy industry allows for the loading ramp to be folded and unfolded countless times without malfunctions and more durable. Aluminum alloy has high hardness, toughness and resilience, please use it with confidence.
  • 【Dimension】Unfolded size is 72" x 11.6" x 2.4" (183 x 30 x 6cm), folded size is 36.6" x 11.6" x 6.1" (93 x 30 x 15.5cm). Two handles on the loading ramp, which are easy to load, easy to carry and save space.Recommended using height is 19.7" (50cm). Suitable for vehicles with tires section width less than 8.5" (215mm).

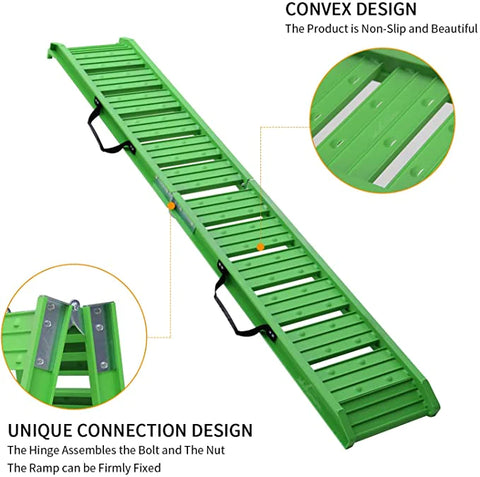

  • 【Unique Design】Hook like claws at the top of the loading ramp that can be firmly fixed to truck's.The hooks provides a greater traction and will keep it from slipping and makes much safer and more stable when you load.Bright colors can make the ramp more visible in use.

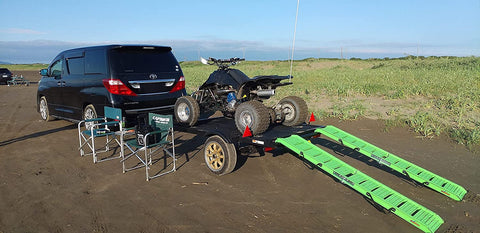

  • 【Versatile Use】The loading ramp can also be used in a variety of places.You can buy two or more ramps to use with ATV & UTV, lawn mower, truck, motorcycle, trailers, dirt bike and garden tractor and so on. Note: Not suitable for pets.
  • 【Safety Guarantee】Convex type design makes the loading ramp not only has the anti-skid function, but also is more beautiful.Since the bottom of the ramp is designed to be more flat, it is easier to transport your motorcycle and other vehicles to the truck. Do not ride equipment up or down the ramp.


View full details

Collapsible content

Shipping

We will deliver the goods within 24 hours after receiving the payment, except for weekends and holidays.Normally, delivery to the lower 48 states of the United States usually takes 3-7 working days(except special circumstances).

Return

Returnable within 30 days.Return Policy

Warranty

Warranty period of our ramp is 1-year, artificial damage is not within the warranty period.

Contact

Whatever you need, wherever you are, we're happy to help you.

Your message will be sent to our customer service center. We will respond to you as soon as possible.

E-mail: salesus@ruedamann.com

How to choose a ramp?

Ruedamann wheelchair ramps are one of the best-selling mobility ramps in the United States and are widely used in the commercial, transportation industry, healthcare and nursing home industries, and private individuals. We know you may also be wondering how to choose the best ramp, so we’ve created this guide to help ensure you get the best ramp for your purposes.

1. First you need to measure the steps, stairs, thresholds, curbs, vehicles, etc. where the ramp will be placed:

(1) Measure the total vertical height from the ground to where the ramp is placed, which we call the "vertical height". (See below)
How to select a wheelchair ramp?


(2) Measure the total length of the steps to ensure the ramp is long enough to overcome the steps.  (See below)
Slope length



2. Understand the slope ratio.

Common slope ratios are: 1:4; 1:6; 1:8; 1:10 (see the figure below).

size

For manual wheelchairs, our recommended slope ratio is 1:6. For example, for a 1 cm rise (vertical height) you will need a 6cm long ramp. If you have a larger space for the ramp, you can buy a longer ramp than recommended as this means you will have less effort and easier going up and down the steps. Note: 1:4 is the maximum height.

3. We also recommend checking the threshold and whether there is any height inside the steps.

For situations where the interior height is low, bridge-type sill ramps are often the perfect solution. ​

4. Choice of width.

Your ramp should be wide enough to accommodate your wheelchair/scooter, but narrow enough to accommodate your threshold. For this reason, we offer a range of widths for you to choose from.

Our normal folding ramps are 72cm wide, and we also offer extra-wide folding ramps with a width of 85cm. Telescopic ramps require you to check whether the tire width of the wheelchair or scooter you are using exceeds the inner width of the telescopic ramp. The inner width of our telescopic ramps is in the range of 15-25cm.

Note: Since the side height of all telescopic ramps is 5cm, the chassis height of the wheelchair must be greater than 5cm. If the bottom of the chassis is too low, the wheelchair will get stuck on the side tubes of the ramp.

5. Contact us.

If the above article does not answer your questions, please contact us with your questions.
